Parallax Hero Images

Implementation breakdown of the ParallaxHeroImages component, covering its layout positioning, customizable depth variants, and mouse-controlled spring animations.

[!NOTE] This component is referenced from the Aceternity UI Parallax Hero Images.

1. High-Level Overview

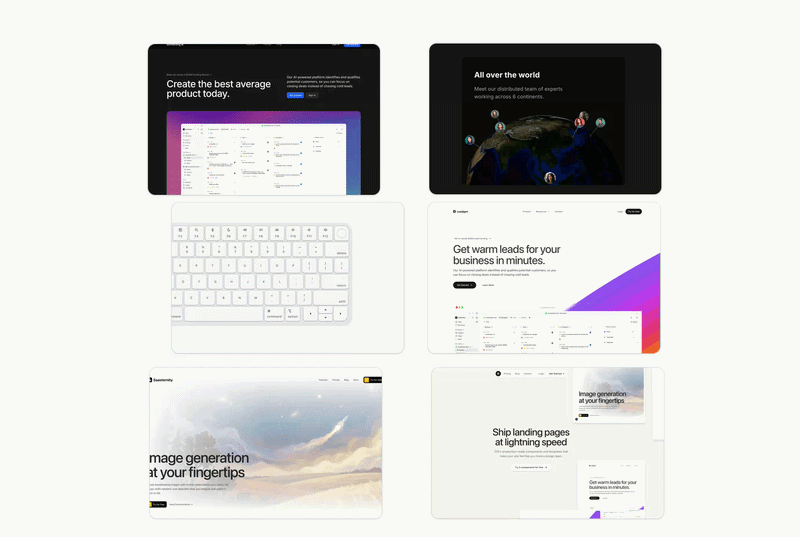

The ParallaxHeroImages component renders an absolute-positioned grid of up to 8 images scattered across the screen. As the user moves their cursor:

• Mouse Position Tracking: The component tracks the mouse coordinate relative to the screen dimensions and normalizes it.
• Varying Depth Offsets: Individual images shift under a clean spring dynamic, but in varying ratios depending on their assigned depth.
• Parallax Illusion: This creates a realistic parallax effect where closer images (higher depth values) slide more, and background images (lower depth values) move less.

2. Component Implementation (parallax-hero-images.tsx)

Below is the complete implementation of the ParallaxHeroImages component using Framer Motion (motion/react) for spring-loaded physical interactions:

"use client";
import React, { useEffect, useState, useMemo, useCallback, memo } from "react";
import {
  motion,
  useMotionValue,
  useSpring,
  useTransform,
  MotionValue,
} from "motion/react";
import { cn } from "@/lib/utils";

type ImagePosition = {
  src: string;
  position:
    | "top-left"
    | "top-right"
    | "mid-left"
    | "mid-right"
    | "bottom-left"
    | "bottom-right"
    | "far-left"
    | "far-right";
  depth: number;
  delay: number;
};

const positionStyles: Record<
  ImagePosition["position"],
  { top: string; left?: string; right?: string }
> = {
  "top-left": { top: "8%", left: "4%" },
  "top-right": { top: "8%", right: "4%" },
  "mid-left": { top: "38%", left: "6%" },
  "mid-right": { top: "38%", right: "6%" },
  "bottom-left": { top: "68%", left: "4%" },
  "bottom-right": { top: "68%", right: "4%" },
  "far-left": { top: "52%", left: "2%" },
  "far-right": { top: "52%", right: "2%" },
};

const positionOrder: ImagePosition["position"][] = [
  "top-left",
  "top-right",
  "mid-left",
  "mid-right",
  "bottom-left",
  "bottom-right",
  "far-left",
  "far-right",
];

type DepthVariant = "default" | "edge-focus";

const depthValuesByVariant: Record<DepthVariant, number[]> = {
  default: [0.3, 0.35, 0.9, 0.85, 0.4, 0.45, 0.25, 0.2],
  "edge-focus": [0.85, 0.9, 0.3, 0.35, 0.8, 0.85, 0.4, 0.45],
};

const SPRING_CONFIG = { damping: 25, stiffness: 120 };

export interface ParallaxHeroImagesProps {
  images: string[];
  className?: string;
  imageClassName?: string;
  variant?: DepthVariant;
}

export const ParallaxHeroImages = ({
  images,
  className,
  imageClassName,
  variant = "default",
}: ParallaxHeroImagesProps) => {
  const mouseX = useMotionValue(0);
  const mouseY = useMotionValue(0);

  const smoothMouseX = useSpring(mouseX, SPRING_CONFIG);
  const smoothMouseY = useSpring(mouseY, SPRING_CONFIG);

  const positions = useMemo(() => {
    const limitedImages = images.slice(0, 8);
    const depthValues = depthValuesByVariant[variant];
    return limitedImages.map((src, index) => ({
      src,
      position: positionOrder[index],
      depth: depthValues[index],
      delay: index * 0.12,
    }));
  }, [images, variant]);

  useEffect(() => {
    const handleMouseMove = (e: MouseEvent) => {
      const x = (e.clientX / window.innerWidth) * 2 - 1;
      const y = (e.clientY / window.innerHeight) * 2 - 1;
      mouseX.set(x);
      mouseY.set(y);
    };

    window.addEventListener("mousemove", handleMouseMove);
    return () => window.removeEventListener("mousemove", handleMouseMove);
  }, [mouseX, mouseY]);

  return (
    <div
      className={cn(
        "pointer-events-none absolute inset-0 overflow-hidden",
        className,
      )}
    >
      {positions.map((pos, index) => (
        <ParallaxImage
          key={`${pos.src}-${index}`}
          src={pos.src}
          position={pos.position}
          depth={pos.depth}
          delay={pos.delay}
          imageClassName={imageClassName}
          smoothMouseX={smoothMouseX}
          smoothMouseY={smoothMouseY}
        />
      ))}
    </div>
  );
};

interface ParallaxImageProps extends ImagePosition {
  imageClassName?: string;
  smoothMouseX: MotionValue<number>;
  smoothMouseY: MotionValue<number>;
}

const ParallaxImage = memo(function ParallaxImage({
  src,
  position,
  depth,
  delay,
  imageClassName,
  smoothMouseX,
  smoothMouseY,
}: ParallaxImageProps) {
  const maxOffset = 40;

  const translateX = useTransform(
    smoothMouseX,
    [-1, 1],
    [-maxOffset * depth, maxOffset * depth],
  );

  const translateY = useTransform(
    smoothMouseY,
    [-1, 1],
    [-maxOffset * depth, maxOffset * depth],
  );

  const posStyle = positionStyles[position];

  return (
    <motion.div
      className="absolute"
      style={{
        top: posStyle.top,
        left: posStyle.left,
        right: posStyle.right,
        x: translateX,
        y: translateY,
        zIndex: Math.round(depth * 10),
      }}
      initial={{ opacity: 0, filter: "blur(20px)", scale: 0.9 }}
      animate={{ opacity: 1, filter: "blur(0px)", scale: 1 }}
      transition={{
        duration: 0.8,
        delay: delay,
        ease: [0.25, 0.1, 0.25, 1],
      }}
    >
      <img
        src={src}
        alt=""
        loading="lazy"
        decoding="async"
        className={cn(
          "aspect-4/3 h-20 w-32 rounded-lg object-cover shadow-sm ring-1 ring-black/10 sm:h-40 sm:w-56 md:h-52 md:w-80 dark:ring-white/10",
          imageClassName,
        )}
      />
    </motion.div>
  );
});

3. Grid Layout & Positioning

The visual structure of the hero layout is formed by placing individual image container boxes absolute-positioned at specific percentages within the parent viewport container.

A. Viewport Constraints

The parent wrapping context enforces:

• pointer-events-none: Allows background images overlays to not block mouse interactions (clicks, text selection, scroll) on the content underneath.
• absolute inset-0 overflow-hidden: Pins the layout container to fill its relative boundaries completely and prevents overflow scrollbars as outer images float dynamically.

B. Position Anchoring (Nearest Positioned Ancestor)

In CSS, absolutely positioned child elements anchor themselves to the nearest ancestor that has a position of absolute, relative, or fixed (rather than static).

Setting the parent container to absolute creates a local context for the child cards:

• Coordinate Scoping: Child coordinates like top: 8% or left: 4% align relative to the container boundaries, keeping the layout self-contained.
• Clipping & Layout: It enables overflow-hidden to crop images that shift out of bounds during interaction.
• Reusability: It allows the component to be dropped anywhere on the site without images flying out of position.

C. Responsive Percentage Map

The positionStyles map ensures structured scatter layout coordinates across the layout boundary:

These offsets guarantee that images are positioned responsively across varying screen widths without overlapping the center text column.

4. Custom Depth Variants & Dynamic Layering

To give users different parallax options, the component leverages depth arrays where each position's depth directly influences both the velocity of translation and the visual layout layering (zIndex).

A. Presets Structure

Two depth presets are defined within depthValuesByVariant:

• default (Focus Center-Depth): High depth values are focused near the middle rows (mid-left and mid-right at 0.9 and 0.85 depth), meaning foreground movement happens in the middle.
• edge-focus (Focus Outer Borders): High depth values are concentrated at the corners (top-left and top-right at 0.85 and 0.9 depth), causing the screen border cards to move more aggressively.

B. Math-Based Dynamic Layering

To prevent foreground/background elements from clipping unnaturally during motion transitions, the layer order matches the physical model:

zIndex = Math.round(depth * 10)

Applying this calculation inside the inline style of motion.div guarantees that items with the maximum depth (closer to the user) are rendered with higher stack ordering (z-index: 9) than deep-background items (z-index: 2).

5. Moving Parts of the Interactive Parallax

The motion behavior operates through mouse position normalization, spring-loaded interpolation, and depth-scaled translations.

1. Unified Normalized Mouse Tracking

A window event listener tracks window.mousemove coordinates and maps them into a standardized [-1, 1] coordinate system:

• x = (e.clientX / window.innerWidth) * 2 - 1

• y = (e.clientY / window.innerHeight) * 2 - 1

• Centering Advantage: Re-centering the coordinate space around (0,0) when the cursor sits at the viewport's exact half-width and half-height ensures that the default position remains perfectly stationary.

2. Spring Smoothing

The coordinates are passed to Framer Motion's useSpring hook to smooth raw inputs:

const smoothMouseX = useSpring(mouseX, { damping: 25, stiffness: 120 });

Damping at 25 combined with 120 stiffness ensures that image offsets move with a highly-polished organic drag, eliminating immediate jumps.

3. Translate Offset Scaling

In ParallaxImage, the smooth mouse values are transformed into translation distances using a depth multiplier:

const maxOffset = 40;
const translateX = useTransform(smoothMouseX, [-1, 1], [-maxOffset * depth, maxOffset * depth]);

The mathematical mapping of translation offsets becomes:

• translateX = smoothMouseX * maxOffset * depth
• translateY = smoothMouseY * maxOffset * depth

As depth ranges from [0.2, 0.9]:

• Background Card (depth = 0.2): Moves at most 8px (40 * 0.2).
• Foreground Card (depth = 0.9): Moves at most 36px (40 * 0.9).

This gradient of translations accurately mimics optical depth.

4. Performance & Smooth Rendering

To maintain a consistent 60fps during cursor movement:

• React.memo Wrapper: The child ParallaxImage is wrapped with memo. Because it subscribes to smoothMouseX and smoothMouseY via Framer Motion's MotionValue context, Framer Motion can update the elements directly via DOM stylesheet properties (translates), completely bypassing React component re-renders.
• Lazy Image Loading: Images leverage native loading="lazy" and decoding="async" tags to avoid layout blocks during initial staggered loads.
